Category

Model Number

HFC-400GMLS5

Overall Specification

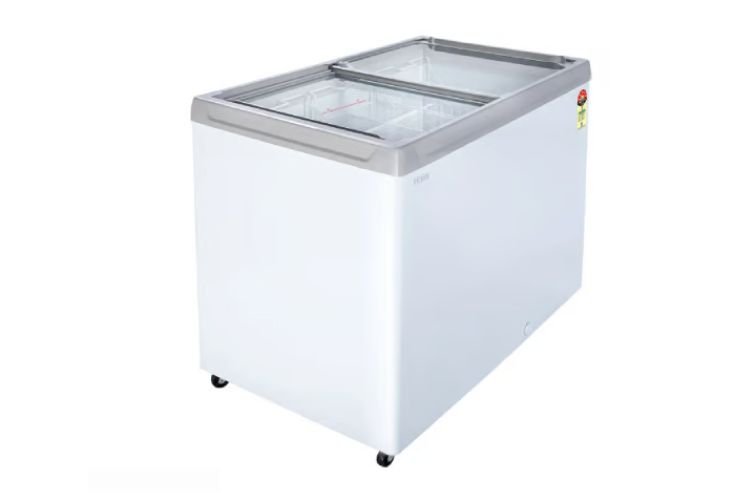

Product Image

General

1. Sheet metal appearance (white)
2. Integrated handle
3. Mechanical temperature control
4. Mesh food box is optional
5. Four-sided refrigeration
6. British Power Cord

Color

White

Perfomance parameters

Test Standard

IS7872:2020/Haier Standard

Climate Class

T

Targeted Star Rating

5

Cooling method

Direct cooling

Rated Current (A)

1.7

Rated Voltage (V)

230V

Rated Power (Watt)

200

Rated Frequency (Hz)

50Hz

Platform (Depth) mm

650

Gross Volume (L)

405

Net Volume (L)

340

Special features

Five Surface cooling

No

Convertible

No

Door Open alarm

No

Digital temp display

No

Fast freezer knob

No

Structural specification

Outer cabinet material

PCM

Inner cabinet material

Emboss PCM

PUF thickness ( Cabinet) mm

70

PUF thickness ( Door)mm

NA

Door type

Glass Top

Door outer material

Glass

Door Inner Material

Glass

No. of Doors

2

Door shape

Flat Door

Door body color

Transperant

Door Lock

Door Lock

Cabinet light

LED

Door light Position

-

Hinge

-

Door Handle

Integrated Handle

Castors

4 universal

System specification

Refrigerant type

R290

Refrigerant Qty (g)

85

Expansion type

Capillary

Drier type

Copper strainner

Evaporator type

Skin type

Evaporator tube material

AL

Condenser type

Internal skin + Force

Condenser tube material

MS SWST tube

Electrical Specification

Power plug standard

British Power Cord

Compressor type

Hermetic seal reciprocating

Compressor Model

LK68DU1/Donper

Compressor BTU

1109.225

Compressor Watts

Capacity : 325W

Capacitor

5 uF

Compressor circuit

RSCR

Fan type

AC AXIAL FAN

Thermostat  type

Mechnical

Thermostat temperature range (Freezer)

≤-18

Thermostat temperature range (Cooler)

NA

Voltage range

160-270V

Control Panel Location

RHS in machine room

Control panel knob

Yes

Power on Indicator ( Green)

Yes

Compressor on Indicator ( Red)

NA

Dimensions/Weight

Net Weight (kg)

62

Gross Weight (kg)

64
